Reefer Container Dimensions

❄️ What is a Reefer Container?

A reefer container (refrigerated container) is designed to transport and store temperature-sensitive cargo such as food, pharmaceuticals, and chemicals.

Unlike standard dry containers, reefer containers are equipped with:

• Built-in refrigeration units

• Insulated walls and flooring

• Precise temperature control systems

These features impact the internal dimensions and weight capacity, making it important to understand the specifications before purchasing.

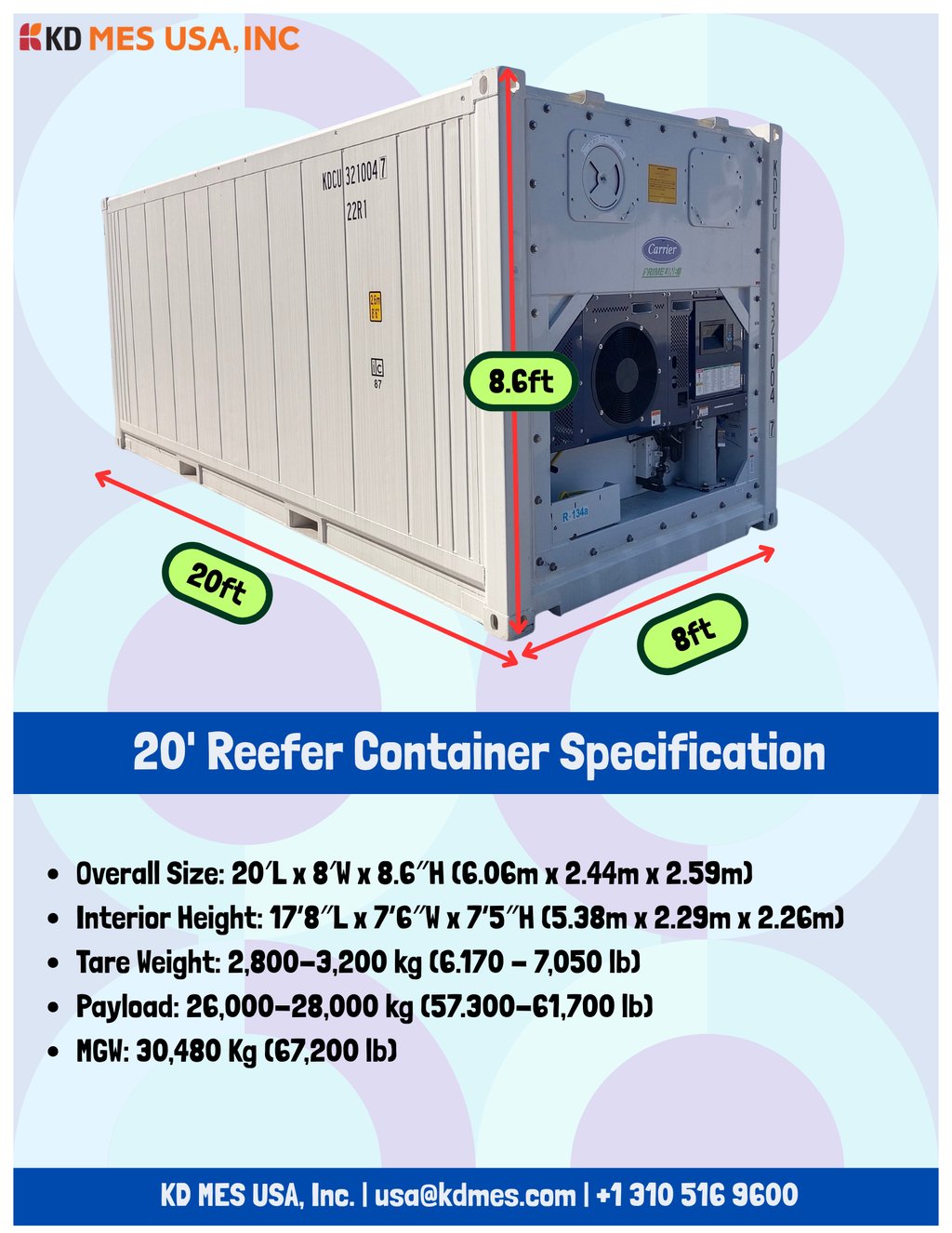

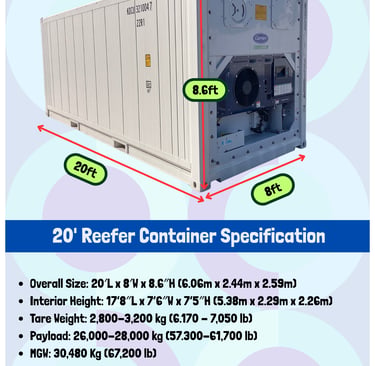

📏 20ft Reefer Container Dimensions

🔹 External Dimensions

• Length: 20 ft

• Width: 8 ft

• Height: 8 ft 6 in

🔹 Internal Dimensions

• Length: approx. 17 ft 8 in

• Width: approx. 7 ft 6 in

• Height: approx. 7 ft 5 in

🔹 Capacity & Weight

• Volume: approx. 1,000 – 1,100 cu ft

• Tare Weight: approx. 6,200 – 7,000 lb

• Payload: approx. 57,000 – 61,000 lb

• MGW: 67,200 lb

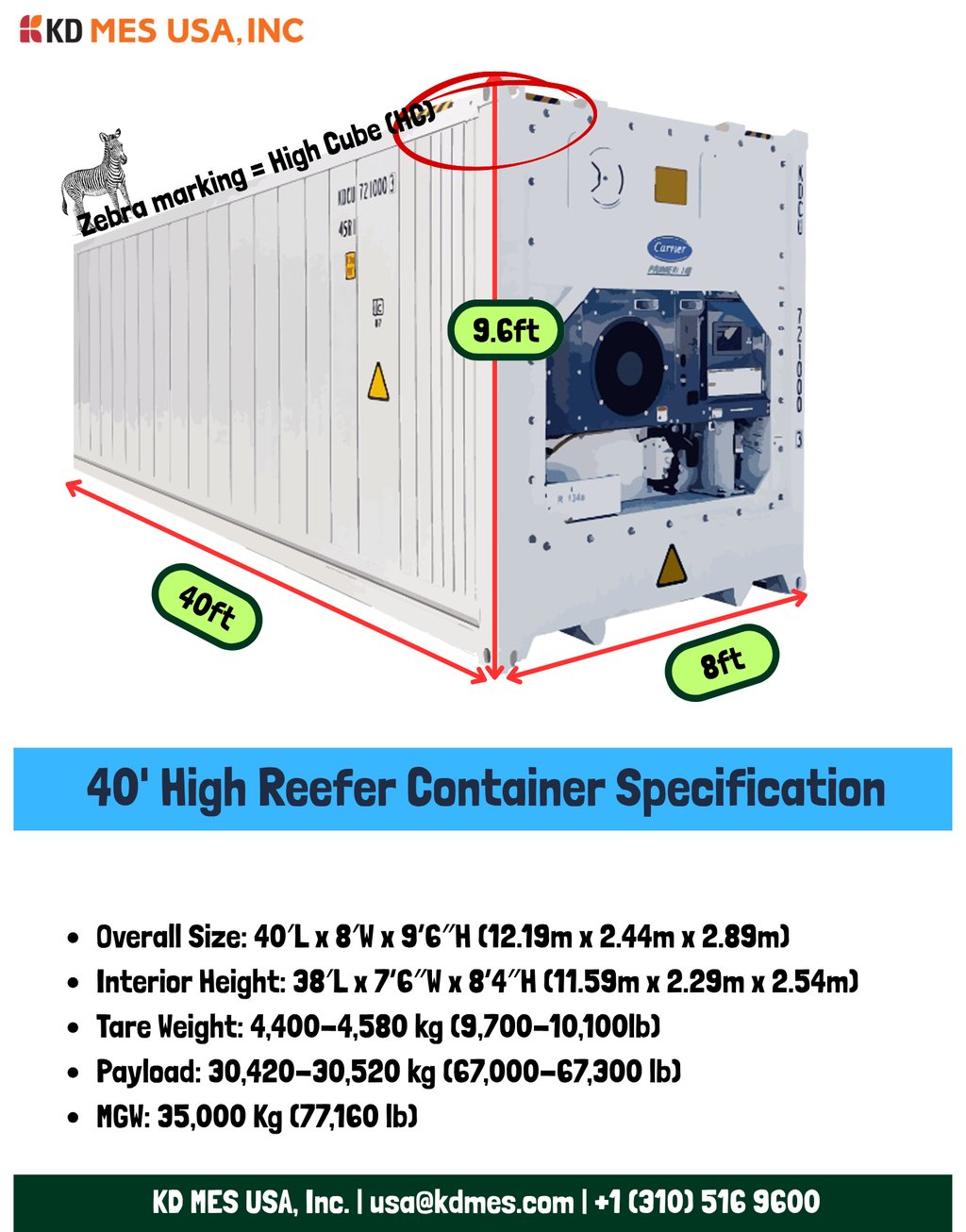

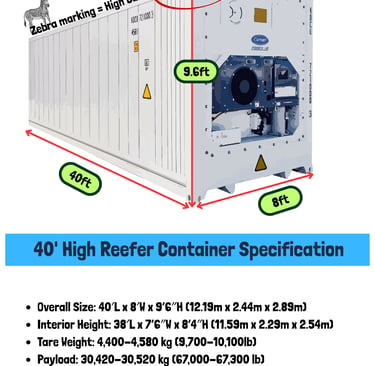

📏 40ft High Cube Reefer Container Dimensions (40HCRF)

🔹 External Dimensions

• Length: 40 ft

• Width: 8 ft

• Height: 9 ft 6 in

🔹 Internal Dimensions

• Length: approx. 38 ft

• Width: approx. 7 ft 6 in

• Height: approx. 8 ft 4 in

🔹 Capacity & Weight

• Tare Weight: approx. 9,700 – 10,100 lb

• Payload: approx. 67,000 lb

• MGW: 77,160 lb

⚖️ Key Differences: Dry vs Reefer Containers

FeatureDry ContainerReefer ContainerInternal SpaceLargerSmaller (due to insulation & unit)Tare WeightLighterHeavierPower RequiredNoYes (electric supply needed)UsageGeneral cargoTemperature-controlled cargo

⚡ Important Considerations

Before purchasing or leasing a reefer container, consider:

1. Power Supply

Reefer containers require external power (typically 380–460V, 3-phase).

2. Reduced Internal Space

Due to insulation and machinery:
👉 Internal dimensions are smaller than standard containers.

3. Weight Limitations

Higher tare weight means:
👉 Slightly lower payload capacity.

🚢 Applications of Reefer Containers

• Food storage and transportation

• Pharmaceuticals

• Chemical products

• Temporary cold storage solutions

💡 Why Choose KD MES USA?

At KD MES USA, we supply both new and used reefer containers through our global sourcing network.

• Direct sourcing from Asia

• Reliable inventory across the U.S.

• Flexible solutions including delivery and one-way options

👉 Check available stock and pricing:kdmescontainer.com

📌 Conclusion

Understanding reefer container dimensions is essential when planning your logistics, storage, or export operations.

Whether you need a 20ft reefer for compact storage or a 40ft high cube reefer for larger capacity, choosing the right specification ensures efficiency and cost control.
